Technical Specifications & Layout

Structure
Load bearing structure with tie-beam below the plinth and lintel level.

Super Structure
9” thick brick work for all external walls. 4 ½” thick brick work for all internal walls.

Plastering
Internal walls + Ceiling: Smoothly plastered. External Walls: Sponge finish plastering with water proof admixture.

Painting / Polishing
Interior : Acrylic emulsion Exterior : Cement based paint Ceiling : White painted emulsion

Flooring
Tandur polished blue stone in all rooms. Wash Basin: Counter top with single lever mixing tap.

Toilets
Ceramic tiles dado up to 7’-0” height. EWC wall mounted and counter top wash basin with single lever mixing tap. Single lever hot and cold water mixer unit for showers and wash basin.

Doors
Main door & Internal doors: Solid teak wood frame with Designed flush shutters, hardware fitting with aluminium powder coated.

Windows
Non-teak wooden window frame with teak shutter and SS Mesh shutter with relevant fittings and paint.

Kitchen / Utility
Pantry platform with sink.
Electrical
Fire resistant electrical wires and copper wirings Air conditioning points, TV Point, Internet Point Telephone Point, Fan Point, Fridge Point, Light Points, Exhaust fan Points.

Water supply
Water Softener supplied to overhead tank

Sewage Line
Sewage line connected to manholes
Rain water lines up to harvesting pit to recharge the ground water table.

Security System
Round the clock security
High-tech security features
Solar water heating system
Green lawns around the house
Avenue plantations on the roads

Villas Elevation

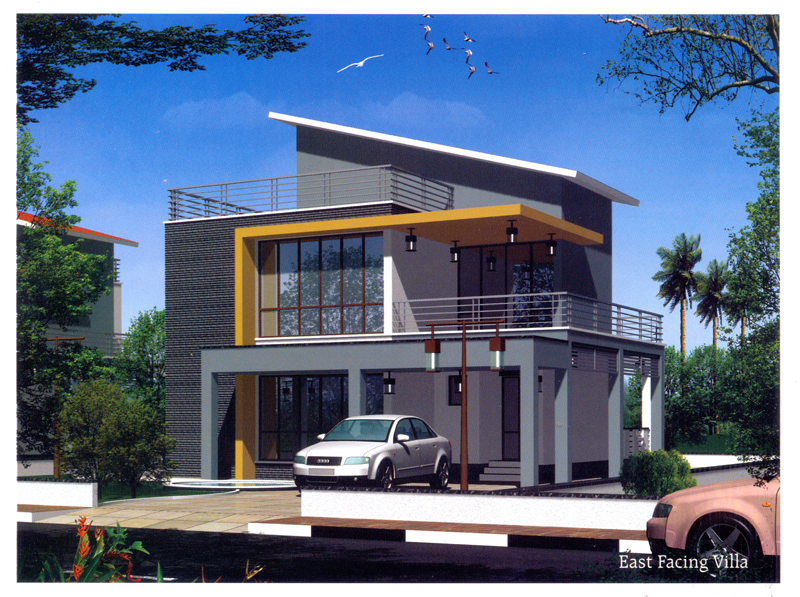

500 Sq yards Villa Elevation

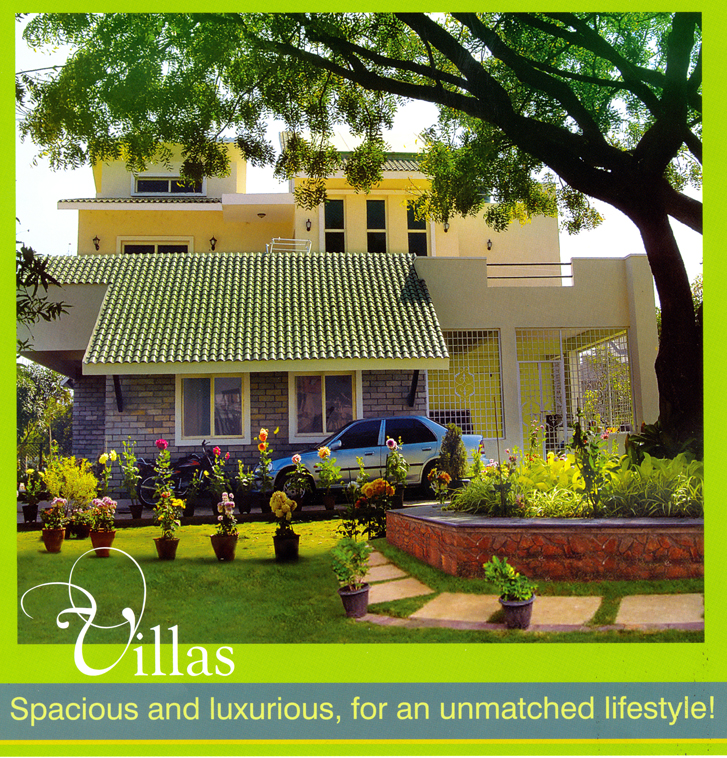

1000 Sq yards Villa Elevation

Villas Floor Plans
500 Sq yards East Facing Villa Floor Plan

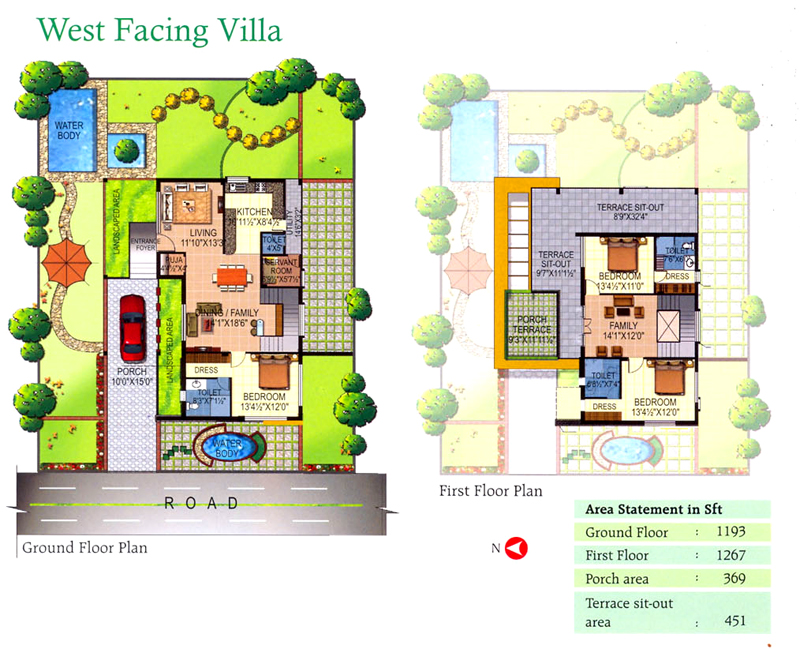

500 Sq yards West Facing Villa Floor Plan

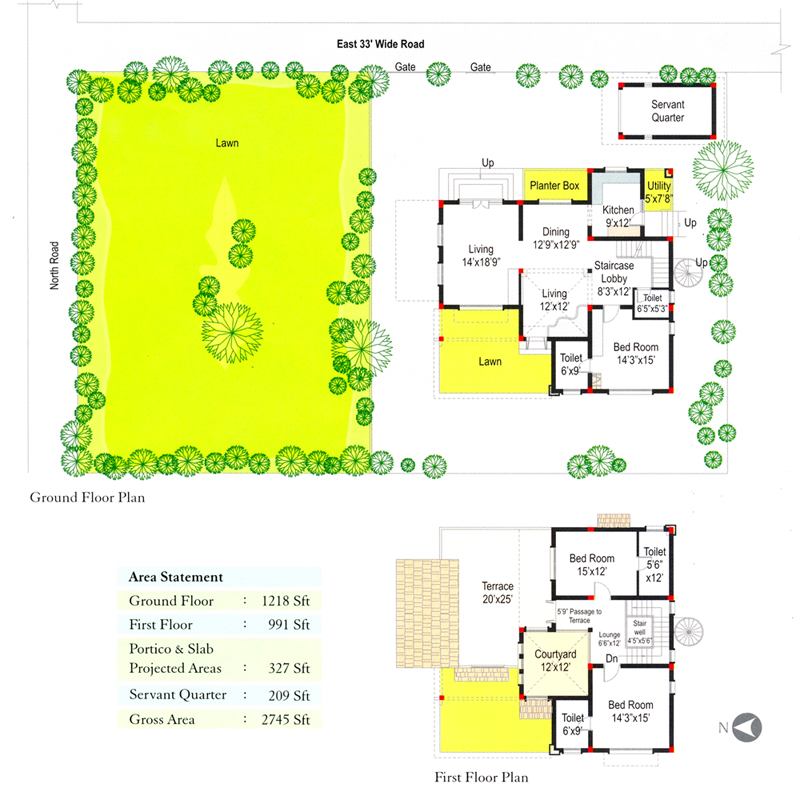

1000 Sq yards East Facing Villa Floor Plan

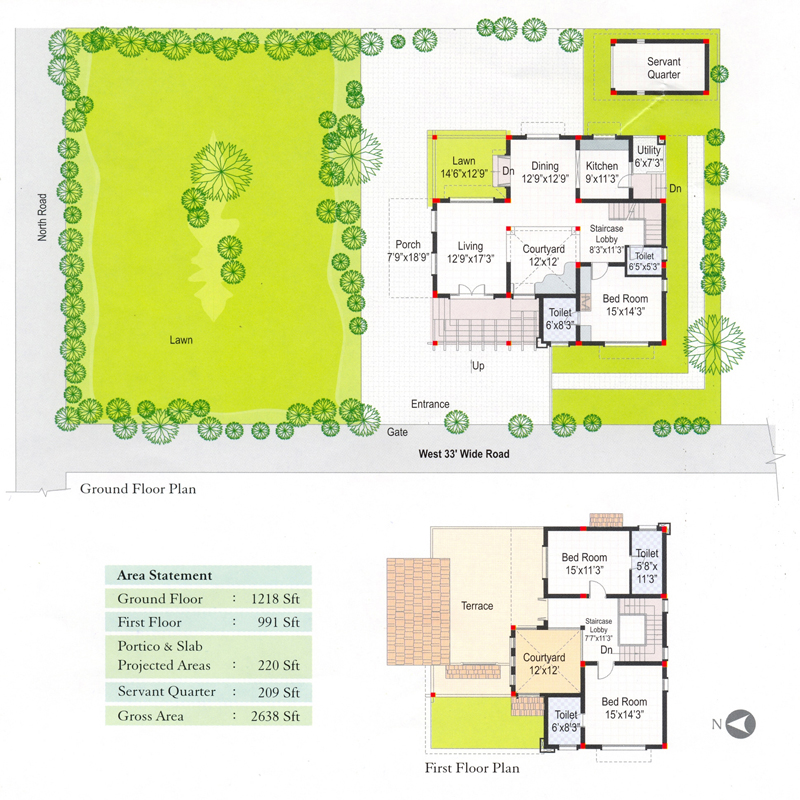

1000 Sq yards West Facing Villa Floor Plan
